How to Perform a Kruskal-Wallis Test in Stata: A Step-by-Step Guide

The Kruskal-Wallis Test is a powerful non-parametric statistical procedure used to determine if there are statistically significant differences between the medians of three or more independent groups. Unlike the standard One-Way ANOVA, which relies on the assumption of normality, the Kruskal-Wallis Test does not require the data to follow a specific distribution. This makes it an essential tool for researchers working with ordinal data or continuous data that exhibit significant skewness or outliers. By transforming raw scores into ranks, this test evaluates whether the samples originate from the same distribution, providing a robust alternative when parametric assumptions are violated.

In Stata, performing this analysis is highly efficient due to the built-in kwallis command. This command calculates the necessary rank sums and provides a test statistic that follows a chi-squared distribution. Using Stata for this purpose allows for a seamless workflow that transitions from data cleaning to descriptive statistics and finally to inferential testing. Because the Kruskal-Wallis Test is a rank-based method, it is particularly resilient to the influence of extreme values, ensuring that your statistical conclusions remain valid even in the presence of irregular data points.

The primary null hypothesis for this test posits that the population medians of all groups are identical. Conversely, the alternative hypothesis suggests that at least one group median differs significantly from the others. Throughout this tutorial, we will explore the nuances of executing this test within the Stata environment, interpreting the resulting p-values, and reporting the findings with academic precision. By following these steps, you will gain a deeper understanding of how to manage multi-group comparisons in a non-parametric framework.

Theoretical Foundations of the Kruskal-Wallis Test

Before diving into the software implementation, it is crucial to understand the mathematical logic behind the Kruskal-Wallis Test. This test is essentially an extension of the Mann-Whitney U Test for more than two groups. It works by pooling all observations from every group and ranking them from smallest to largest. If the null hypothesis is true, the average ranks for each group should be approximately equal. If certain groups have consistently higher or lower ranks, the resulting H-statistic will increase, leading to a smaller p-value.

One of the key requirements for a meaningful Kruskal-Wallis Test is the assumption of independent observations. Each subject or data point must belong to only one group, and there should be no relationship between the observations in different groups. Additionally, while the test does not assume normality, it does assume that the distributions of the groups have a similar shape. If the shapes are identical, the test specifically compares medians; if the shapes differ, the test compares the mean ranks of the distributions.

Researchers often turn to non-parametric methods like the Kruskal-Wallis Test when dealing with Likert scales or small sample sizes where Central Limit Theorem effects may not yet be apparent. It serves as a safeguard against Type I errors that can occur when ANOVA is applied to heavily skewed data. By focusing on the order of the data rather than the precise intervals between values, the test remains highly reliable in diverse experimental designs and observational studies.

Setting Up the Stata Workspace and Loading Data

To begin our practical demonstration, we must first initialize the Stata environment and load a suitable dataset. For this tutorial, we will utilize the census dataset provided by Stata-Press, which contains demographic information from the 1980 United States census. This dataset is ideal because it includes categorical variables (such as geographic regions) and continuous variables (such as median age), which are necessary for performing a group comparison.

Load the dataset by entering the following command into your Stata Command box:

use http://www.stata-press.com/data/r13/census

Once the data is loaded, it is standard practice to perform an initial data audit. This involves checking for missing values and ensuring that the variable types are correctly assigned. The census data categorizes states into four distinct regions: the Northeast, North Central, South, and West. Our objective is to determine if the median age of the population varies significantly across these different geographic areas. Organizing your Stata workspace effectively at this stage prevents errors during the statistical computation phase.

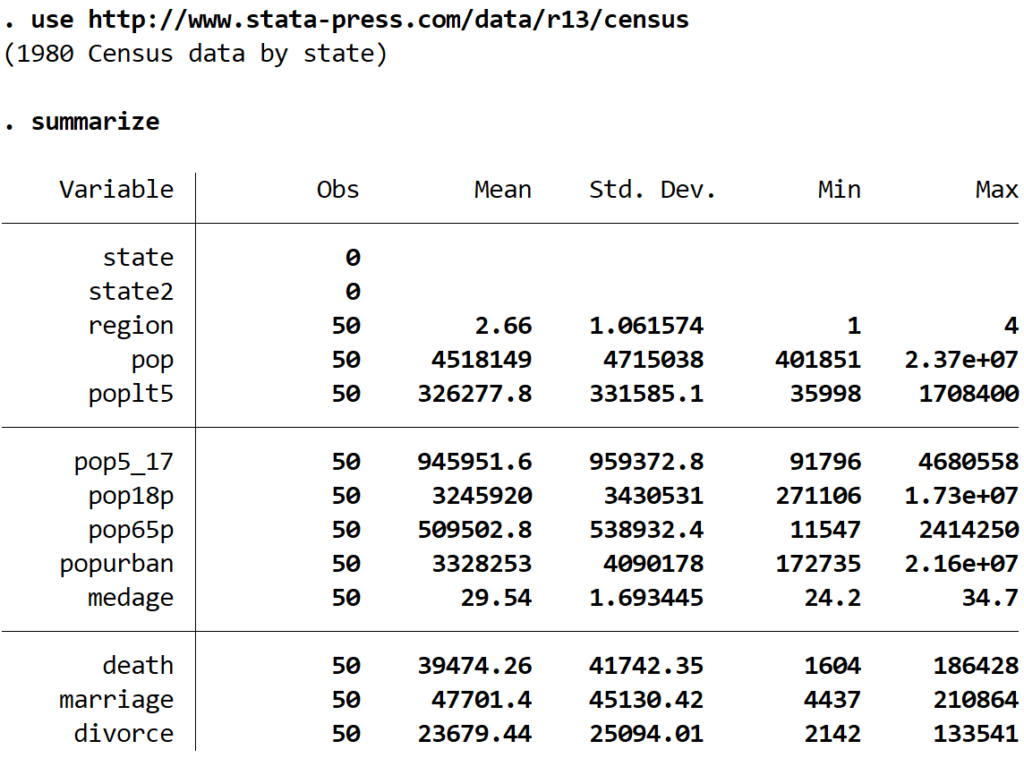

After loading the data, you should generate a statistical summary to understand the characteristics of your variables. This provides a baseline for the descriptive statistics that will eventually accompany your inferential test results. Use the summarize command to view the mean, standard deviation, and range of the variables in the dataset:

summarize

In the resulting output, identify the medage (median age) and region variables. These are the primary components of our analysis. The medage variable represents our dependent variable (measurement), while the region variable serves as our independent variable (grouping factor).

Exploratory Data Analysis and Visualization

Before conducting the formal Kruskal-Wallis Test, it is highly recommended to visualize the data. Exploratory Data Analysis (EDA) allows you to identify outliers and observe the distribution of the dependent variable across different groups. In Stata, one of the most effective ways to compare groups visually is through a box plot. A box plot displays the median, quartiles, and potential outliers, providing a clear picture of the variance within each category.

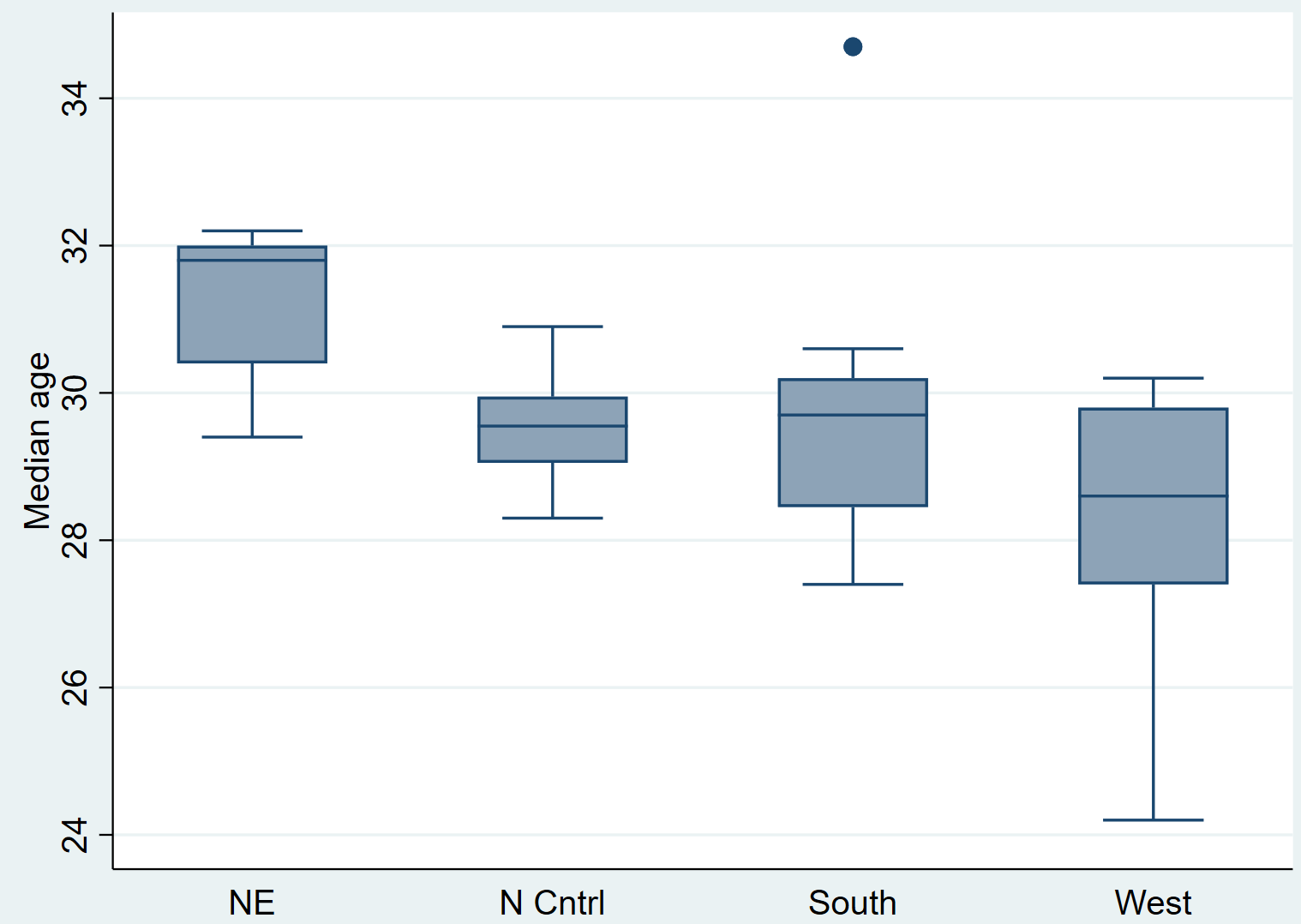

To create a box plot of median age categorized by region, execute the following command:

graph box medage, over(region)

By examining the resulting graph, you can observe whether the interquartile ranges overlap significantly. If the median lines within the boxes are at different levels, it suggests that a statistically significant difference may exist. This visual evidence serves as a preliminary check and helps justify the use of a non-parametric test if the distributions appear non-normal or if there is heteroscedasticity (unequal variances) between the regions.

Visualizing your data also helps in detecting data entry errors or extreme outliers that could disproportionately affect parametric tests. Since the Kruskal-Wallis Test relies on ranks, it is less sensitive to these outliers, but knowing they exist is vital for a comprehensive data analysis. Stata‘s graphing capabilities are robust, allowing you to customize labels and titles to make the visualization ready for publication or presentation.

Executing the Kruskal-Wallis Command in Stata

Once you are satisfied with your exploratory analysis, you can proceed to the core statistical test. The syntax for the Kruskal-Wallis Test in Stata is straightforward. You use the kwallis command, followed by the measurement variable and then a comma with the by() option to specify the grouping variable. This structure tells Stata exactly which metric to rank and which categories to compare.

For our specific census example, the syntax is as follows:

kwallis medage, by(region)

When you run this command, Stata processes the rank sums for each region. It calculates the expected rank sum under the null hypothesis and compares it to the observed rank sum. The algorithm automatically handles the assignment of ranks, including the treatment of tied observations, which is a critical step in ensuring the accuracy of the H-statistic. This automation reduces the risk of manual calculation errors that often occur when performing rank-based tests by hand.

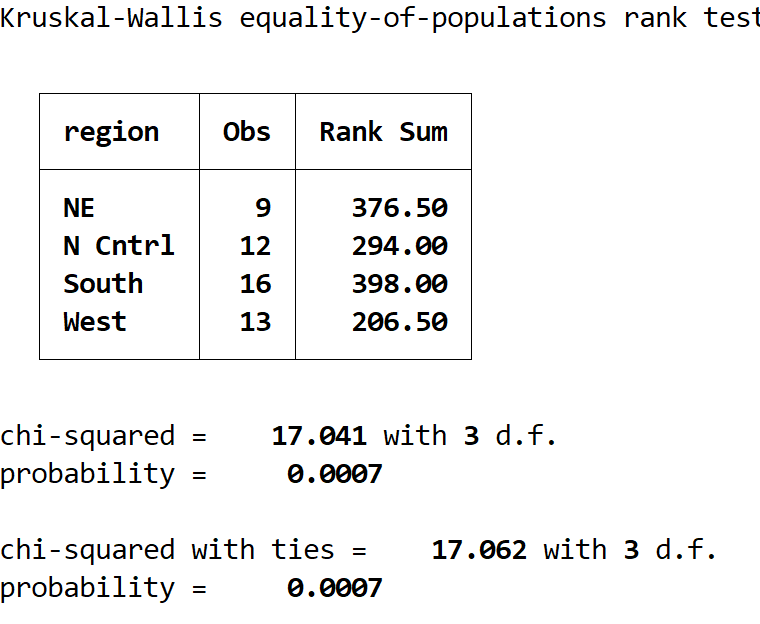

The output generated by Stata provides a comprehensive summary table. This table lists each group, the number of observations (n) within that group, and the rank sum. These details are essential for verifying that the test has been applied to the correct sample size and for understanding which groups contributed most to the overall test statistic. Following the execution of the command, the next vital phase is the interpretation of these numerical results.

Interpreting the Statistical Output

Interpreting the Kruskal-Wallis Test output requires a focus on three primary values: the rank sums, the Chi-squared statistic, and the probability value. The rank sums indicate the total value of ranks assigned to each region. A higher rank sum relative to the sample size suggests that the group generally contains higher values for the measurement variable. In our example, Stata displays these totals clearly, allowing for an immediate qualitative comparison of the regions.

The Chi-squared with ties value is our test statistic (H). In this analysis, the value is 17.062. This number represents the magnitude of the difference between the observed ranks and what would be expected if all group medians were identical. A larger Chi-squared value indicates a greater discrepancy between the groups. Stata also provides the degrees of freedom (df), which is calculated as the number of groups minus one (k – 1). With four regions, our degrees of freedom is 3.

The most critical component for hypothesis testing is the probability (p-value). In our Stata output, the p-value is 0.0007. In statistical inference, we typically compare this value to a significance level (alpha), usually set at 0.05. Since 0.0007 is significantly lower than 0.05, we have sufficient empirical evidence to reject the null hypothesis. This leads us to conclude that there is a statistically significant difference in the median age across at least two of the four census regions.

Post-hoc Testing and Further Analysis

While the Kruskal-Wallis Test tells us that a difference exists, it does not specify which groups are different from one another. This is known as an omnibus test. To pinpoint the exact pairwise differences, researchers must perform post-hoc analysis. Common choices for post-hoc testing following a non-parametric omnibus test include Dunn’s Test or multiple Mann-Whitney U tests with a Bonferroni correction to control for Type I error inflation.

In Stata, you can install user-written commands like dunntest to perform these comparisons. These tests evaluate each possible pair of groups (e.g., Northeast vs. South, West vs. North Central) to see where the statistical significance lies. Without post-hoc testing, your analysis remains incomplete, as you can only state that the regions are “not all the same” rather than identifying the specific geographic trends in median age.

Additionally, it is important to consider the effect size. While the p-value tells you if a difference is likely due to chance, the effect size (such as epsilon-squared) tells you the magnitude of that difference. Reporting effect sizes alongside p-values is increasingly required by academic journals to provide a more nuanced view of the practical significance of the research findings. Stata provides the foundational data needed to calculate these metrics manually or through additional plugins.

Reporting Your Findings Formaly

The final step in the research process is to report the results in a clear, professional manner suitable for a manuscript or technical report. A standard statistical report should include the name of the test performed, the test statistic, the degrees of freedom, the p-value, and a clear statement regarding the null hypothesis. It is also helpful to include the sample sizes (n) for each group to provide context for the rank sums.

Based on our Stata analysis, an appropriate write-up would be: “A Kruskal-Wallis Test was conducted to examine whether median age differed significantly across four United States regions: the Northeast (n = 9), North Central (n = 12), South (n = 16), and West (n = 13). The results indicated a statistically significant difference in median age between the regions (χ²(3) = 17.062, p = 0.0007). Consequently, the null hypothesis of equal medians was rejected, suggesting that geographic location has a significant impact on the age distribution within the 1980 census data.”

When reporting results, always ensure that your notations follow standard APA or Vancouver guidelines. Using the Greek letter for Chi-squared (χ²) and clearly stating your alpha level adds to the credibility of your work. By combining descriptive statistics (from Step 1), visualizations (from Step 2), and inferential results (from Step 3), you create a compelling and rigorous narrative of your data analysis journey in Stata.

Best Practices for Non-Parametric Analysis

To ensure the integrity of your statistical analysis, always verify that your data structure is appropriate for the Kruskal-Wallis Test. Ensure that your dependent variable is at least ordinal and that your groups are truly independent. If your groups are related or matched (such as in a pre-test/post-test design), you should use the Friedman Test instead of the Kruskal-Wallis Test.

Moreover, be mindful of sample size. While non-parametric tests are excellent for small samples, they generally have less statistical power than parametric tests when the assumptions of normality are met. If your data is normally distributed, an ANOVA might be more likely to detect a true effect. Therefore, always perform normality tests (like the Shapiro-Wilk test) before deciding which path to take in your statistical workflow.

Finally, utilize Stata‘s extensive documentation and help files. By typing help kwallis in the Command box, you can access detailed information about the mathematical formulas used and additional options available for the command. Staying informed about the latest updates in statistical software ensures that your methodology remains current and defensible in the scientific community. With these tools and techniques, you are well-equipped to perform complex group comparisons with confidence.
