Place the Legend Outside of a Matplotlib Plot
Often you may want to place the legend of a Matplotlib plot outside of the actual plot.
Fortunately this is easy to do using the matplotlib.pyplot.legend() function combined with the bbox_to_anchor argument.
This tutorial shows several examples of how to use this function in practice.
Example 1: Place Legend in Top Right Corner

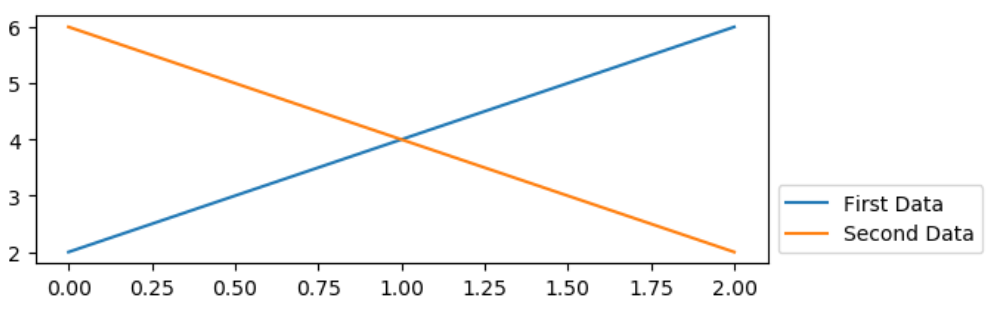

The following code shows how to place the legend in the top right corner outside of a Matplotlib plot:
import matplotlib.pyplot as plt #create plot plt.subplot(211) plt.plot([2, 4, 6], label="First Data") plt.plot([6, 4, 2], label="Second Data") #place legend in top right corner plt.legend(bbox_to_anchor=(1,1), loc="upper left") #show plot plt.show()
Note that the loc argument tells Matplotlib to place the upper left corner of the legend line at the (x,y) coordinates of (1,1) in the plot.
Example 2: Place Legend in Bottom Right Corner
The following code shows how to place the legend in the bottom right corner outside of a Matplotlib plot:
import matplotlib.pyplot as plt #create plot plt.subplot(211) plt.plot([2, 4, 6], label="First Data") plt.plot([6, 4, 2], label="Second Data") #place legend in top right corner plt.legend(bbox_to_anchor=(1,0), loc="lower left") #show plot plt.show()
Note that the loc argument tells Matplotlib to place the lower left corner of the legend line at the (x,y) coordinates of (1,0) in the plot.
Example 3: Place Legend Above Plot
The following code shows how to place the legend above the Matplotlib plot:
import matplotlib.pyplot as plt #create plot plt.subplot(211) plt.plot([2, 4, 6], label="First Data") plt.plot([6, 4, 2], label="Second Data") #place legend above plot plt.legend(bbox_to_anchor=(0, 1, 1, 0), loc="lower left", mode="expand", ncol=2) #show plot plt.show()
We could also leave out the mode and ncol arguments if we simply want to place the legend in the top left corner above the plot:
