Introduction: The Challenge of Sequence Analysis in Excel

Data integrity is paramount, and ensuring that a numerical sequence is complete often requires systematic validation. When data is imported from external sources or generated incrementally, small gaps can occur due to errors or omissions. While manually reviewing hundreds or thousands of numbers is impractical, Excel offers sophisticated tools to automate this audit. We will explore both modern dynamic array methods and legacy array formulas to achieve precise identification of missing integers.

Traditionally, one might attempt to identify missing values by first sorting the data—arranging the numbers in ascending or descending order within a dedicated column. While sorting helps visualize the flow, it does not automatically flag gaps. For preliminary assessments, tools like the “Fill Series” feature coupled with Conditional Formatting can provide visual clues. However, the most reliable methods rely on constructing calculated sequences that represent the expected range and then comparing the actual data against this ideal set.

Basic Methodology: Manual and Conditional Approaches

Before diving into complex formulas, it is valuable to understand simpler diagnostic techniques. A basic approach involves utilizing Conditional Formatting to highlight where the expected difference between adjacent cells (usually 1 for consecutive integers) is violated. This requires a sorted list but provides immediate visual feedback regarding where a gap starts. For instance, using a rule that highlights a cell if the value is not equal to the preceding cell plus one can reveal breaks in the continuity.

Furthermore, simple statistical functions can help confirm the existence of a missing number, even if they cannot identify which number is missing. Utilizing the COUNT or COUNTA functions allows you to determine the total number of entries present in your dataset. By comparing this count to the total range of the sequence (Maximum value – Minimum value + 1), any discrepancy immediately signals a gap. This serves as an excellent initial validation step before deploying complex formulas.

Leveraging Advanced Array Formulas for Identification

For users of modern Excel versions (Excel 365 or 2021), dynamic Array Formulas offer the most elegant solution. Specifically, a combination of the FILTER function, SEQUENCE, and COUNTIF functions can generate a virtual list of all expected numbers and compare it instantly against the existing data range, spilling the missing results into an adjacent column automatically. This technique avoids the need for manual dragging or entering the formula as a multi-cell array.

The core logic behind this advanced method is generating a complete list of expected values using SEQUENCE, checking which of those values are NOT present in the actual data using a combination of COUNTIF and NOT, and then extracting only those non-present values using the FILTER function. This single formula dramatically streamlines the process of data auditing.

The formula provided below is designed to find all missing values within the sequence specified in the range A2:A13, assuming the minimum value is defined in cell D1 and the maximum value is defined in cell D2. Note that this formula is designed for efficient, modern dynamic array handling:

You can use the following dynamic Array Formula in Excel to identify missing numbers in a sequence using the modern FILTER function:

=FILTER(NOT(COUNTIF(A2:A13,SEQUENCE(D2+1-D1,,D1)))*SEQUENCE(D2+1-D1,,D1),NOT(COUNTIF(A2:A13,SEQUENCE(D2+1-D1,,D1))))

This powerful calculation dynamically finds all of the missing values in the sequence contained within the range A2:A13.

It is essential to understand that this formula relies on specific cell references: cell D1 must contain the calculated or assumed minimum value in the sequence, and cell D2 must contain the calculated or assumed maximum value in the sequence.

Practical Example: Setting Up the Data Range and Bounds

To illustrate the application of this formula, consider a scenario where we have a column of numbers, Column A, that represents a theoretical consecutive sequence but contains noticeable gaps. We must first establish the true boundaries of the expected sequence to calculate the missing values accurately.

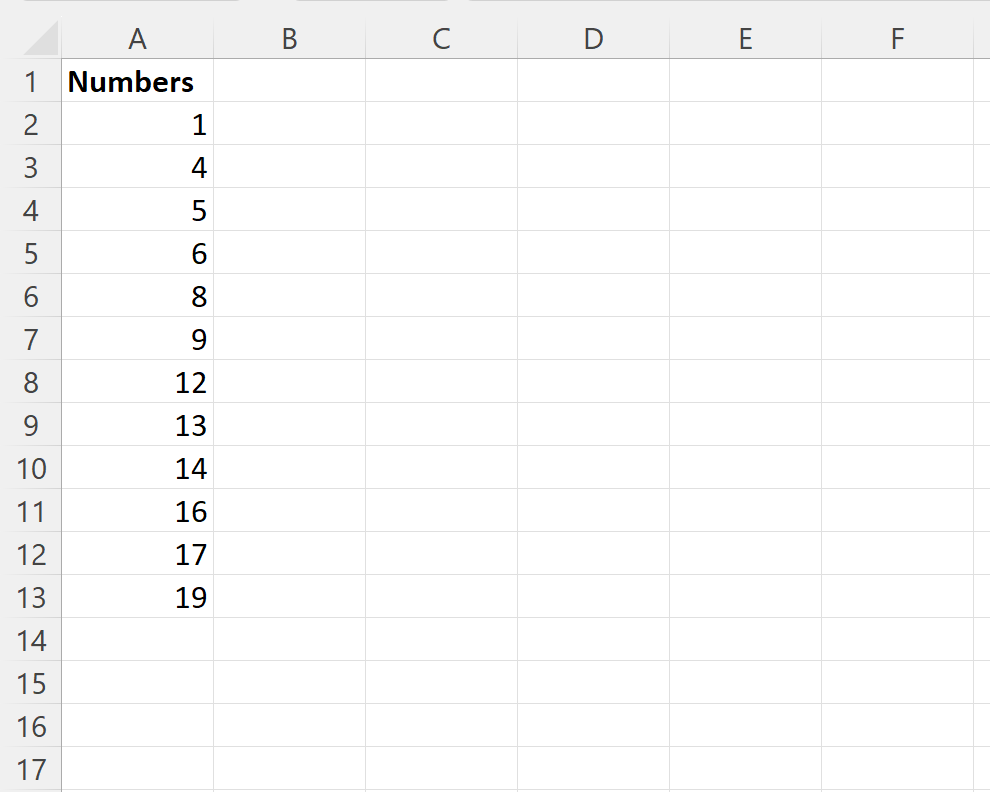

Suppose we have the following column of numbers in Excel:

Upon reviewing the data, we observe that the values in the sequence range from a minimum of 1 to a maximum of 19. Our objective is to identify every single integer between 1 and 19 that is absent from Column A. We must set up helper cells to determine these bounds automatically, making the overall solution flexible for different datasets.

To automate the identification of the sequence boundaries, we utilize the MIN and MAX functions. These functions scan the data range (A2:A13) and return the lowest and highest values, respectively. This step ensures that our dynamic formula works regardless of whether the actual data starts at 1 or any other arbitrary number.

First, we’ll type the following standard formulas into cells D1 and D2 to automatically determine the minimum and maximum values in the sequence:

• D1: =MIN(A2:A13)
• D2: =MAX(A2:A13)

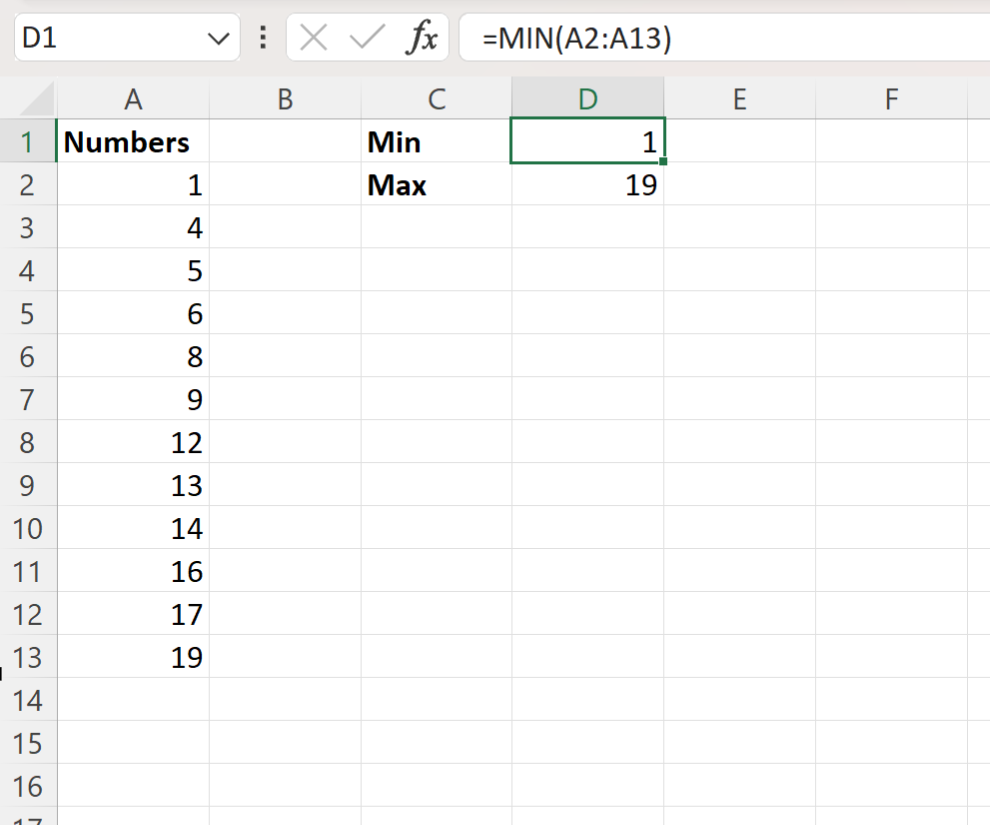

The following screenshot demonstrates the successful use of these boundary-defining formulas in practice:

Alternative Approach: Using Legacy Array Functions (SMALL/IF/MATCH)

While dynamic Array Formulas (using FILTER/SEQUENCE) are ideal for modern Excel, users of older versions (Excel 2019 and earlier) must rely on legacy array logic, which requires pressing CTRL+SHIFT+ENTER upon entry. This method typically combines SMALL, IF, ISNA, and MATCH to iterate through the entire potential range and return the missing values one by one.

The core concept here is slightly different: we create an array of row numbers that span the maximum theoretical range (e.g., Row 1 to Row 1000). We then use the MATCH function to see if each of these theoretical row numbers exists in our actual data set. If MATCH returns an error (meaning the number is not present), ISNA converts that error into TRUE. The IF function then passes the row number itself (which is the missing value). Finally, the SMALL function pulls these missing values out of the resulting array in ascending order.

Since legacy array formulas do not “spill,” they must be entered into the top cell of the results range (e.g., C5) and then dragged down to reveal all missing numbers sequentially. If the formula is dragged too far, it will eventually return errors (typically #NUM!), indicating that all missing numbers have been found.

Implementing the Legacy Array Formula Step-by-Step

Using the example data set ranging from 1 to 19, we now apply the legacy Array Formula. Note that the range A$1:A$13 in the formula below is crucial, as it defines the scope of the data being checked, while ROW(A$1:A$13) generates the theoretical list of numbers from 1 to 13 (or whatever range is appropriate for the data set).

Next, we can type the following formula into cell C5 to find all missing values in the sequence. Remember, this must be confirmed with CTRL+SHIFT+ENTER (resulting in curly brackets around the formula) and then dragged down:

=SMALL(IF(ISNA(MATCH(ROW(A$1:A$13),A$1:A$13,0)),ROW(A$1:A$13)),ROW(A1))

The following screenshot displays the result of implementing and dragging this formula:

As clearly shown in the resulting visual, Column C displays every missing value from the original sequence of numbers found in column A. Specifically, we can see that the values 2, 3, 7, 10, 11, 15, and 18 are confirmed as being absent from the initial dataset. This method provides an accurate and exhaustive list of omissions.

Applying the Solution to Complex Datasets

A significant advantage of using range-based formulas (like the ones detailed above) is their versatility across different numerical scales. Whether your sequence spans from 1 to 100 or from 10000 to 20000, the underlying logic remains the same. The use of MIN and MAX to define the boundaries (D1 and D2) makes the solution highly adaptable.

For example, imagine a large database where transaction IDs range from 10015 to 10031. Identifying missing IDs manually would be cumbersome. By simply updating the data range reference (A2:A13, etc.) to cover the new transaction ID column, the formula seamlessly adapts. The MIN and MAX calculations will yield 10015 and 10031, respectively, and the formula will then execute the comparison over this large, shifted range.

Consider the following sequence, which is significantly larger than the previous example, ranging from 10015 to 10031:

As anticipated, by adjusting the array references in the legacy formula or updating the boundary references in the dynamic FILTER function, the system correctly identifies the missing values, regardless of their magnitude. This robust functionality confirms that these methods are suitable for comprehensive data validation tasks in professional environments.

Conclusion and Next Steps in Data Validation

The ability to efficiently identify missing data points is a cornerstone of effective data management in Excel. Whether you utilize the cutting-edge elegance of the FILTER and SEQUENCE functions or rely on the proven structure of the legacy SMALL/IF/MATCH Array Formula, Excel provides the tools necessary for a complete sequence audit. These techniques move far beyond simple manual inspection or basic Conditional Formatting, offering definitive numerical results.

Once the missing numbers have been identified, the subsequent steps often involve querying the source system to understand why the gaps occurred, or generating replacement records if appropriate. Mastering these array formulas ensures that your data validation processes are both accurate and scalable, saving significant time during data reconciliation efforts.
