Create and Modify Box Plots in Stata
A box plot is a type of plot that we can use to visualize the five number summary of a dataset, which includes:
- The minimum
- The first quartile
- The median
- The third quartile
- The maximum
This tutorial explains how to create and modify box plots in Stata.
Example: Box Plots in Stata
We’ll use a dataset called auto to illustrate how to create and modify boxplots in Stata.
First, load the data by typing the following into the Command box and clicking Enter:
use http://www.stata-press.com/data/r13/auto
Vertical Box Plots
We can create a vertical box plot for the variable mpg by using the graph box command:
graph box mpg
Horizontal Box Plots
Alternatively, we can create a horizontal box plot by using the graph hbox command:
graph hbox mpg
Box Plots by Category
graph box mpg, over(foreign)
Multiple Box Plots by Category
We can also create box plots for more than one variable based on a categorical variable. For example, the following command can be used to create box plots for the variables headroom and gear_ratio, based on the categorical variable foreign:
graph box headroom gear_ratio, over(foreign)
Modifying the Appearance of Box Plots
We can use several different commands to modify the appearance of the box plots.
We can add a title to the plot using the title() command:
graph box mpg, title(“Distribution of mpg”)
We can also add a subtitle underneath the title using the subtitle() command:
graph box mpg, title(“Distribution of mpg”) subtitle(“(sample size = 74 cars)”)

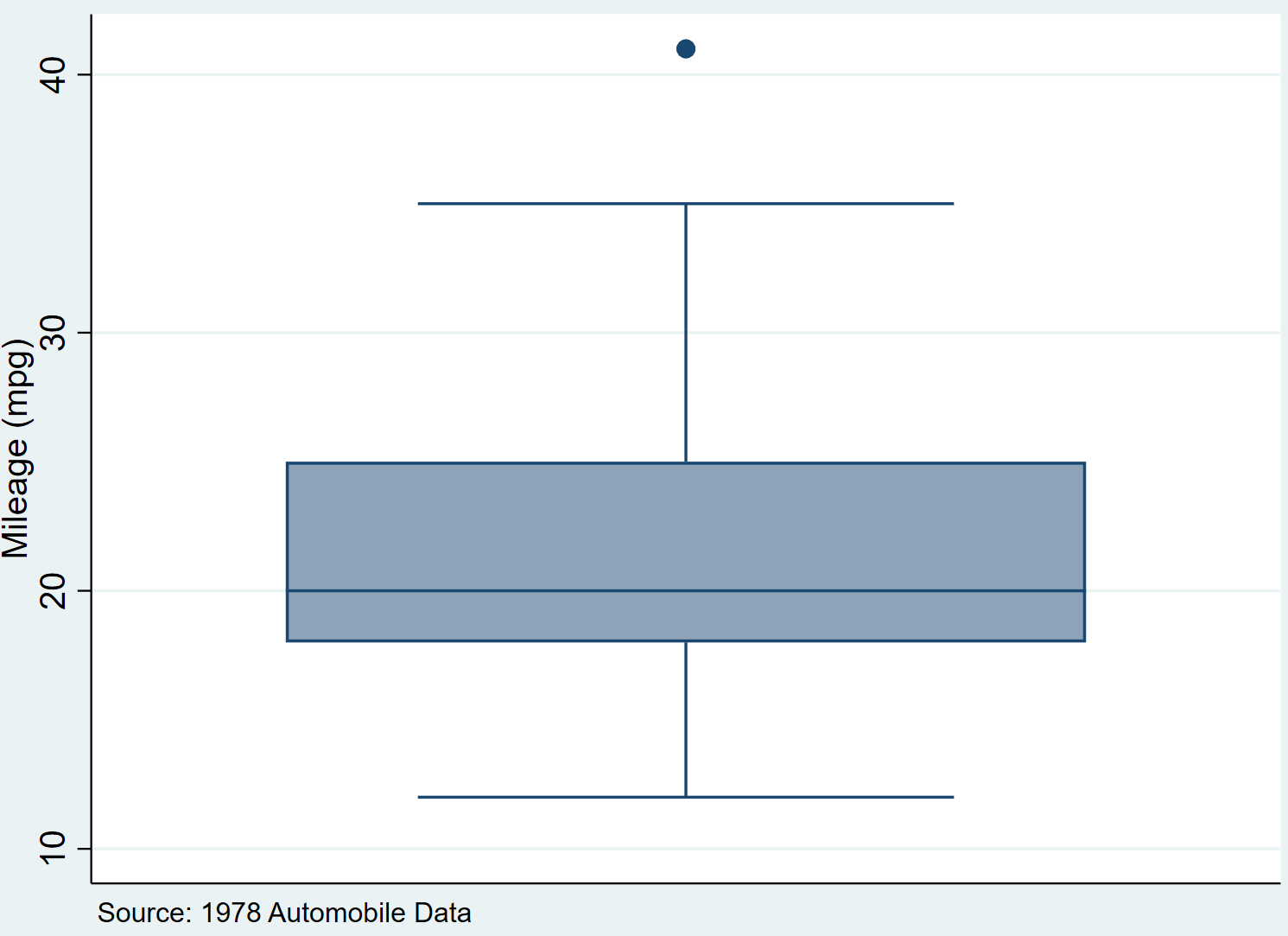

We can also add a note or comment at the bottom of the graph by using the note() command:
graph box mpg, note(“Source: 1978 Automobile Data”)
Lastly, we can change the actual color of the box plot by using the box(variable #, color(color_choice)) command:
graph box mpg, box(1, color(green))
A full list of available colors can be found in the .
