Understanding Data Binning and its Value in Data Analysis

Data binning, also known as data discretization, is a powerful technique used in data preprocessing and data analysis. It involves transforming quantitative variables into a set of qualitative, smaller, and more manageable categories or “bins.” This process is essential when dealing with large, continuous variables that are difficult to visualize or interpret in their raw form. By grouping related values, binning helps reduce the impact of minor observational errors and provides a smoother view of the underlying data distribution, making complex information accessible to a wider audience.

The core purpose of binning is simplification. For instance, instead of analyzing every individual age from 18 to 65, binning allows us to group individuals into meaningful cohorts, such as “Young Adults (18-25),” “Middle Age (26-40),” and so forth. This transformation is particularly useful in data visualization, where histograms and bar charts built on binned data offer significantly clearer insights into frequency and distribution patterns than scatter plots of raw data might. Furthermore, binning can improve the performance of certain analytical models by reducing the complexity and dimensionality of the input data.

In the context of Power BI, leveraging data binning is key to building effective dashboards and reports. While Power BI offers some automated grouping capabilities, for advanced or custom grouping based on specific business rules, users often rely on powerful analytical tools like DAX (Data Analysis Expressions). This article focuses on implementing custom, rule-based data binning using DAX calculated columns to achieve precise categorical organization within your data model.

Native Binning Features vs. Custom DAX Solutions in Power BI

Power BI provides two primary methods for grouping data. The first is through the visual interface, often referred to as “Grouping” or “Binning” in the modeling pane. This feature is excellent for quick, equal-sized numeric bins or for manually grouping qualitative data fields. For example, a user can right-click a numeric column and specify the number of bins or the bin size, and Power BI automatically handles the creation of these derived categories. This method is intuitive and requires no coding.

However, the native visual binning tool has limitations. It generates bins based purely on numerical intervals (e.g., 0-10, 10-20), which may not align with complex, non-linear business requirements. Furthermore, these automatically generated bins are primarily used for visualization purposes and are not easily accessible for complex measure calculations or detailed data modeling scenarios. When the grouping logic needs to be dynamic, based on multiple conditions, or involve custom text labels that reflect specific business logic (e.g., classifying performance as “Good,” “Average,” or “Poor”), a more robust approach is required.

This is where custom solutions using DAX become indispensable. By creating a calculated column using nested conditional logic, analysts gain granular control over the bin boundaries and the resulting output labels. This ensures that the binning structure is permanently embedded into the data model, making the resulting categories available for all subsequent reports, measures, and complex cross-table filtering operations. Using DAX, we can define precise, custom rules that directly reflect the organization’s criteria for segmentation.

Implementing Custom Binning using DAX: The IF/ELSE Structure

To perform highly customized data binning in Power BI, the most common and robust approach involves utilizing the nested IF function within a DAX calculated column. The DAX IF function evaluates a condition and returns one value if the condition is true and another value if the condition is false. By nesting multiple IF statements, we can create a sophisticated decision tree that sequentially checks various criteria to assign a data point to its appropriate bin.

The structure of a nested IF statement for binning follows a waterfall pattern. The formula first checks the lowest boundary condition. If that condition is met, the corresponding bin label is returned, and the evaluation stops for that row. If the condition is false, the formula moves to the next, inner IF statement, effectively defining the next range. This process continues until the final ELSE clause is reached, which typically acts as the catch-all category for any remaining values that did not fit into the preceding bins.

It is crucial to define the logical sequence carefully when using nested IF functions. Since the evaluation stops at the first true condition, conditions should be ordered either from smallest range to largest, or vice versa, ensuring that overlaps are handled correctly. For numeric data, it is common to define the ranges using less than (<) or less than or equal to (<=) operators, as demonstrated in the example below, which segments values based on specific score thresholds.

Step-by-Step DAX Formula Breakdown

You can use the following syntax in DAX to perform rule-based data binning on the values in a particular column. This syntax creates a new column and evaluates each row against a predefined set of conditions, assigning a specific string value representing the bin.

Bin =
IF(
    'my_data'[Points] < 16,
    "<16",
    IF(
        'my_data'[Points] <= 20,
        "16-20",
        IF( 'my_data'[Points] <= 25, "21-25", ">25")
    )
)

This specific formula creates a new column named Bin within the ‘my_data’ table. It uses three nested IF functions to establish four distinct bins based on the values found in the Points column. The logic is applied row by row across the table, determining the appropriate category for each data point based on its score.

The resulting Bin column returns one of four possible string values, allowing for clear categorization in subsequent reports and visualizations. Understanding the sequence of operations is vital for accurate binning. If a value fails the first check, it passes to the next, which implicitly means it already met the minimum requirement of the failed check.

The logic of this DAX expression can be summarized as an ordered set of rules:

• If the value in the Points column is strictly less than 16, the result is “<16“.
• Else (meaning the value is 16 or greater), the formula checks if the value is less than or equal to 20; if true, the result is “16-20“.
• Else (meaning the value is greater than 20), the formula checks if the value is less than or equal to 25; if true, the result is “21-25“.
• Else, if none of the above conditions are met (meaning the value is strictly greater than 25), the final result is the catch-all category, “>25“.

This structured approach ensures that every observation in the Points column is assigned to exactly one non-overlapping bin, effectively transforming a continuous numeric variable into a discrete categorical one suitable for immediate use in reporting within Power BI.

Practical Example: Binning Player Scores

To illustrate the practical application of this custom DAX binning approach, let us consider a hypothetical scenario involving performance datasets. Suppose we have a table named my_data loaded into Power BI, which contains detailed information about various basketball players, including their names and the total number of points they scored during a season. This table serves as the foundation for our analysis.

The initial dataset presents the raw scores, making it difficult to quickly assess the distribution of player performance at a glance. Our objective is to organize these players into distinct performance tiers based on their point totals. This binning process will allow analysts and stakeholders to easily compare the count of players in each performance level, rather than analyzing individual scores.

To initiate the binning process, we need to introduce a new calculated column into the my_data table. In the Power BI Desktop interface, navigate to the “Table Tools” or “Modeling” tab and select the New column option. This action opens the DAX formula bar, enabling us to define the custom logic required for classification.

Once the formula bar is active, the next step involves inputting the carefully crafted nested IF function that establishes the point thresholds. This ensures that the binning rules are consistently applied to every row in the dataset, providing a structured and reliable categorization for subsequent analysis. The resulting column will immediately display the calculated bin for each player.

Executing the Numeric Binning Logic

With the New column function selected, we input the previously defined DAX formula into the editor. This powerful single command executes the complex conditional logic necessary to segment the continuous variable (Points) into four discrete categories represented by numeric ranges. The formula is designed to handle all possible score values within the dataset.

Bin =
IF(
    'my_data'[Points] < 16,
    "<16",
    IF(
        'my_data'[Points] <= 20,
        "16-20",
        IF( 'my_data'[Points] <= 25, "21-25", ">25")
    )
)

Upon execution, this calculation creates the new column, named Bin, which instantly populates the table, placing each player into one of the four defined numeric bins based strictly on their point totals. This immediate feedback demonstrates the efficiency of using DAX for data preparation tasks. The output table clearly shows how the scores map directly to the established ranges, making the performance distribution immediately quantifiable and reportable.

Reviewing the resulting categorized dataset reveals the success of the binning logic. For instance:

• The first player, scoring 22 points, falls within the range of 21 to 25, and is correctly placed into Bin 21-25.
• The second player, who scored 14 points, is strictly less than 16, thus being categorized into Bin <16.
• The third player, achieving 19 points, is greater than 16 but less than or equal to 20, resulting in their placement into Bin 16-20.

This process successfully transforms raw scores into organized groups, which are now ready to be used in powerful measures, such as counting the total number of players within each bin or calculating average statistics specific to each performance tier. This is a fundamental step toward generating meaningful insights from large datasets.

Advanced Binning: Assigning Categorical Labels

While using numeric ranges (like “16-20”) as bin labels is often sufficient for technical data analysis, it is common practice in reporting and business intelligence to use more descriptive, categorical strings. Assigning labels such as “Bad,” “OK,” “Good,” or “Great” makes the data immediately interpretable by business users who may not be familiar with the underlying score thresholds. The use of string labels enhances the narrative quality of the reports.

We can easily adapt the existing nested IF function in DAX to return these customized string values instead of the numeric range indicators. The conditional logic remains identical, checking the same score thresholds in the Points column, but the output for the True condition is changed to a qualitative assessment.

The revised formula, designed to assign qualitative performance tiers, is structured as follows:

Bin =
IF(
    'my_data'[Points] < 16,
    "Bad",
    IF(
        'my_data'[Points] <= 20,
        "OK",
        IF( 'my_data'[Points] <= 25, "Good", "Great")
    )
)

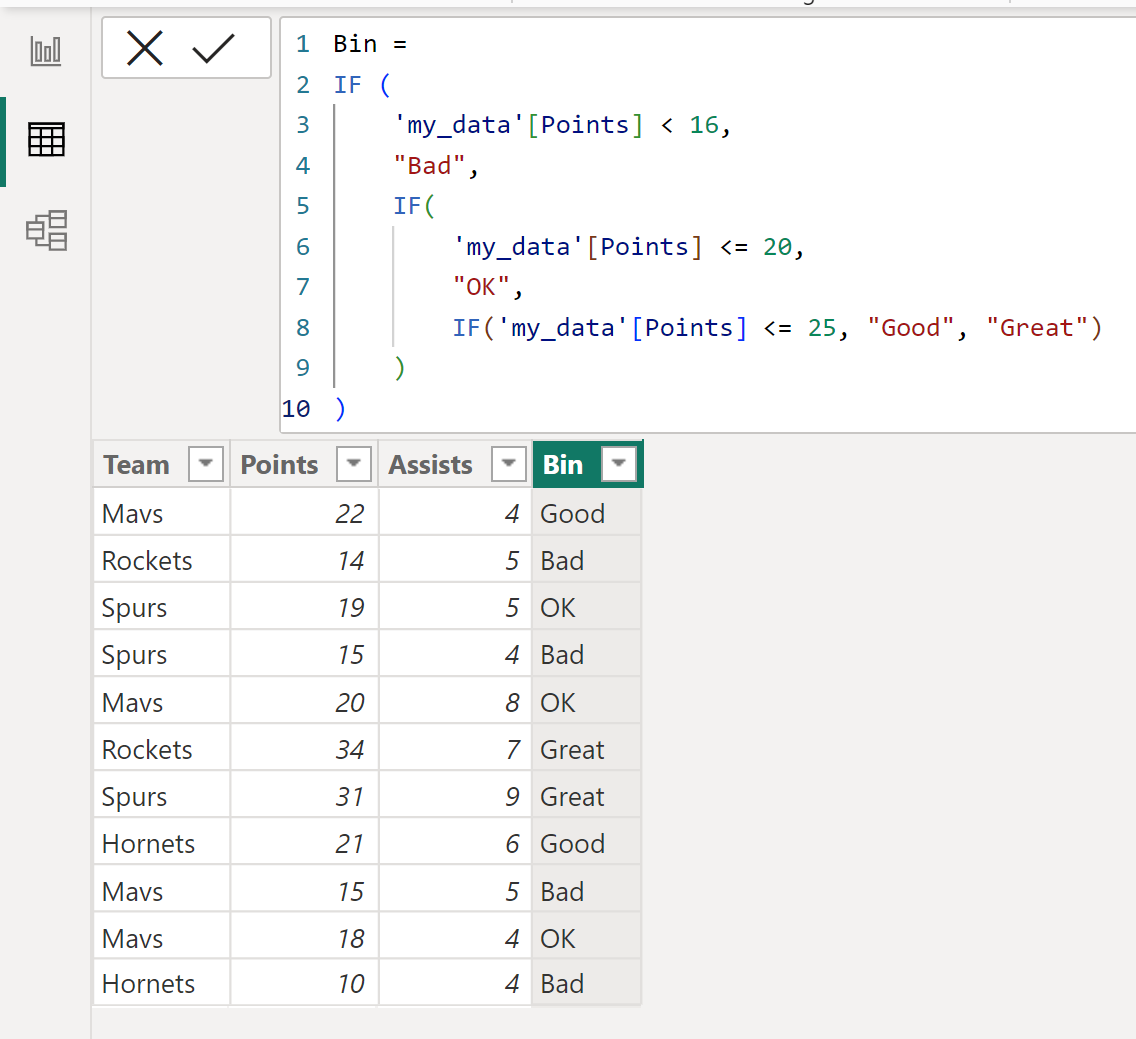

Executing this updated DAX expression overwrites the previous Bin column, replacing the numeric ranges with descriptive string values. This ensures that each player is placed into one of the four defined performance tiers, which are significantly more intuitive for non-technical stakeholders viewing the final reports and visualizations.

The resulting table now displays the categorical labels, which are often preferred for final dashboard presentation. This flexibility demonstrates the power of DAX in adapting data organization to suit various reporting requirements, whether technical or business-facing. It is important to remember that these strings must be enclosed in double quotes within the DAX formula.

Considerations and Limitations of DAX Binning

While nested IF functions provide immense flexibility for custom data binning, this method is not without its limitations, particularly in large-scale enterprise Power BI environments. One major consideration is the maintenance burden. As the number of required bins increases, the formula quickly becomes long, complex, and difficult to debug or modify. DAX technically allows for numerous nested IFs, but practical readability drops sharply after just a few layers.

For scenarios requiring a very large number of sequential bins (e.g., grading scores A+ through F), alternative DAX functions, such as the SWITCH(TRUE(), …) pattern, are often preferred over nested IFs. The SWITCH(TRUE(), …) structure achieves the same conditional logic but presents it in a cleaner, more vertically readable format, reducing the likelihood of syntax errors and simplifying updates when bin boundaries change. Regardless of the function used, the complexity remains in defining and maintaining the boundary logic itself.

Furthermore, if the binning logic involves complex data transformations or requires dynamic calculation based on parameters that change frequently, using the Power Query Editor (M language) might be a more performant and maintainable solution. Power Query executes transformations at the data loading stage, before the data enters the data modeling layer, often leading to better performance, especially with massive datasets. However, for calculated columns based on existing model relationships or row-context logic, DAX remains the mandatory choice.

Note: In these examples we chose to use three nested IF functions to place each player into four bins, but for more extensive categorization, advanced users may substitute this structure with the SWITCH(TRUE(), …) construct for enhanced readability and ease of maintenance, although the fundamental logic remains that of conditional segmentation.

Summary and Best Practices for Data Organization

Data binning in Power BI is a critical tool for transforming continuous, complex variables into actionable, discrete categories. Whether utilizing the automatic grouping feature for simple distributions or deploying highly customized DAX formulas for business-specific segmentation, the goal is always to enhance the clarity and impact of data presentation. Custom DAX solutions, particularly those employing nested IF logic, offer unparalleled precision in defining these categorical boundaries.

When implementing custom binning, best practices dictate that the resulting bin column should always be treated as a text or categorical field, even if the labels are numeric ranges. This prevents Power BI from attempting to aggregate or summarize the bin labels. Additionally, ensure that your binning logic is exhaustive, meaning every possible value in the source column is accounted for, either by a specific condition or by the final default ELSE clause, thus preventing any null or uncategorized data points.

By carefully structuring your DAX code, you can ensure that your datasets are optimized for both analysis and visualization. Effective binning simplifies complex data, allowing stakeholders to focus on trends and segment performance rather than being overwhelmed by raw data points. This convenience and efficiency make data binning a cornerstone technique for any advanced Power BI user aiming to deliver insightful and professional reports.
