How Do I Create a Grouped Frequency Distribution Using Microsoft Excel?
A grouped frequency distribution is a fundamental statistical tool used to organize and summarize large amounts of data. It describes how often specific values within a dataset fall into predefined, non-overlapping ranges or intervals. This organization is crucial for making raw data more interpretable, allowing analysts to quickly identify patterns, central tendencies, and the spread of values. Without grouping, especially when dealing with continuous data, individual values might be too numerous to provide meaningful insights.
The process of creating a reliable grouped frequency distribution requires careful determination of the class intervals (groups) and then counting the number of observations that fall within each interval. This technique is widely applied across various fields, including economics, quality control, and social sciences, whenever the overall structure of the data spread is more important than the occurrence of specific, single values.
While several statistical packages can perform this task, Microsoft Excel offers an intuitive and accessible method using its built-in features. The most efficient and robust way to generate a grouped frequency distribution within Excel is by leveraging the powerful functionality of Pivot Tables, specifically utilizing the specialized Group feature designed for numerical data.
Understanding Grouped Frequency Distributions
Before diving into the mechanics of Excel, it is essential to solidify the definition of a grouped frequency distribution. Unlike a simple frequency distribution, which lists the count for every unique value in the dataset, a grouped distribution aggregates counts into intervals. For instance, if you are measuring student test scores ranging from 50 to 100, a grouped distribution might categorize scores into ranges like 50-60, 61-70, 71-80, and so forth.
The key elements of a grouped frequency distribution include the class limits (the smallest and largest values that can belong to a class), the class boundaries (the true dividing lines between classes to avoid gaps), and the class width or interval size. Choosing an appropriate class width is critical; too many small intervals might hide the overall trend, while too few large intervals might obscure important details within the data spread. Statistical best practices often recommend aiming for between 5 and 15 classes, depending on the sample size.
Using Excel’s Pivot Tables simplifies this process tremendously. Instead of manually sorting data and writing complex counting formulas, Pivot Tables handle the aggregation and grouping automatically, ensuring high accuracy and flexibility in adjusting the class intervals if needed. This method is far superior to using array formulas like FREQUENCY, particularly when dealing with dynamic or changing datasets.
Step-by-Step Guide: Preparing Your Dataset in Excel
To demonstrate this technique, we will use a hypothetical dataset representing the points scored by various basketball players over a series of games. The data must be arranged in a single column, ready for analysis. Ensure that your data range does not contain any text entries, as the grouping feature relies exclusively on numerical input.
Suppose our sample data contains 15 scores, ranging from a minimum value of 1 point to a maximum of 20 points. Organizing the data clearly, perhaps with a column header like “Points,” is a vital first step, as this header will be used by the Pivot Table to label rows and values.
The dataset we will be working with looks like this:
The goal is to determine the distribution of these scores by grouping them into meaningful intervals, such as 1-5, 6-10, and so on, to understand where the scoring frequency is highest.
Initializing the Pivot Table for Frequency Analysis
The creation process begins by initiating the Pivot Table functionality. This step prepares the structure that will allow us to manipulate and summarize the raw data into a grouped format.
Select the Data Range: Highlight the entire column containing the numerical data, including the header. In our example, this is the range A1:A16. The inclusion of the header is necessary for proper Pivot Table field identification.

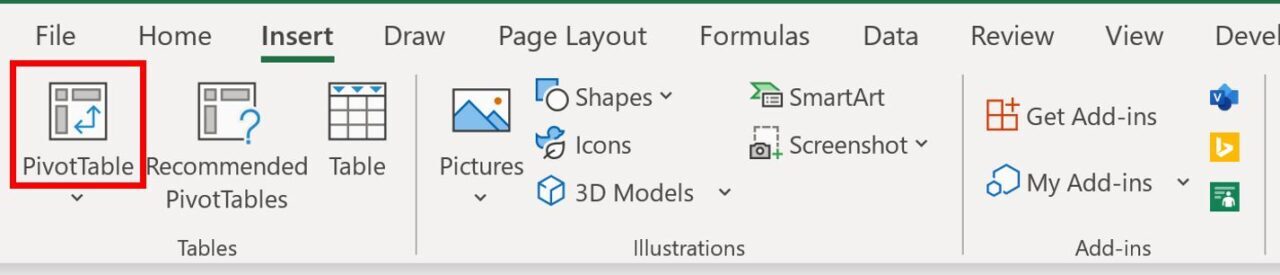

Insert Pivot Table: Navigate to the Insert tab located on the top ribbon of Excel. Within this section, locate and click the PivotTable icon. This action prompts the creation wizard.
This step is visualized below, showing the selection of the correct tool within the Excel interface:
Once the PivotTable window appears, you will need to specify where the report should be placed. Typically, choosing to place the Pivot Table on a New Worksheet is recommended to keep the analysis separate from the raw data, thereby enhancing clarity and organization. Confirm the data range is correct, select the location, and click OK.
Upon clicking OK, a new worksheet will open, displaying the blank Pivot Table structure on the left and the PivotTable Fields pane on the right. This pane is where we define how the data will be summarized.
To set up the initial distribution, drag the field header (in our case, Points) into two distinct areas: first, drag Points into the Rows box, and second, drag Points into the Values box. Dragging the field into the Rows area populates the table with every unique score value, and dragging it into the Values area initiates a summary calculation (usually Sum by default) for those values.
Configuring the Value Field: Ensuring Accurate Counts
When numerical data is dragged into the Values box of a Pivot Table, Excel often defaults to summarizing the data using the Sum function. However, for a frequency distribution, we are interested in the frequency—the sheer count of observations—rather than the sum of the points themselves. Therefore, the aggregation method must be changed from Sum to Count.

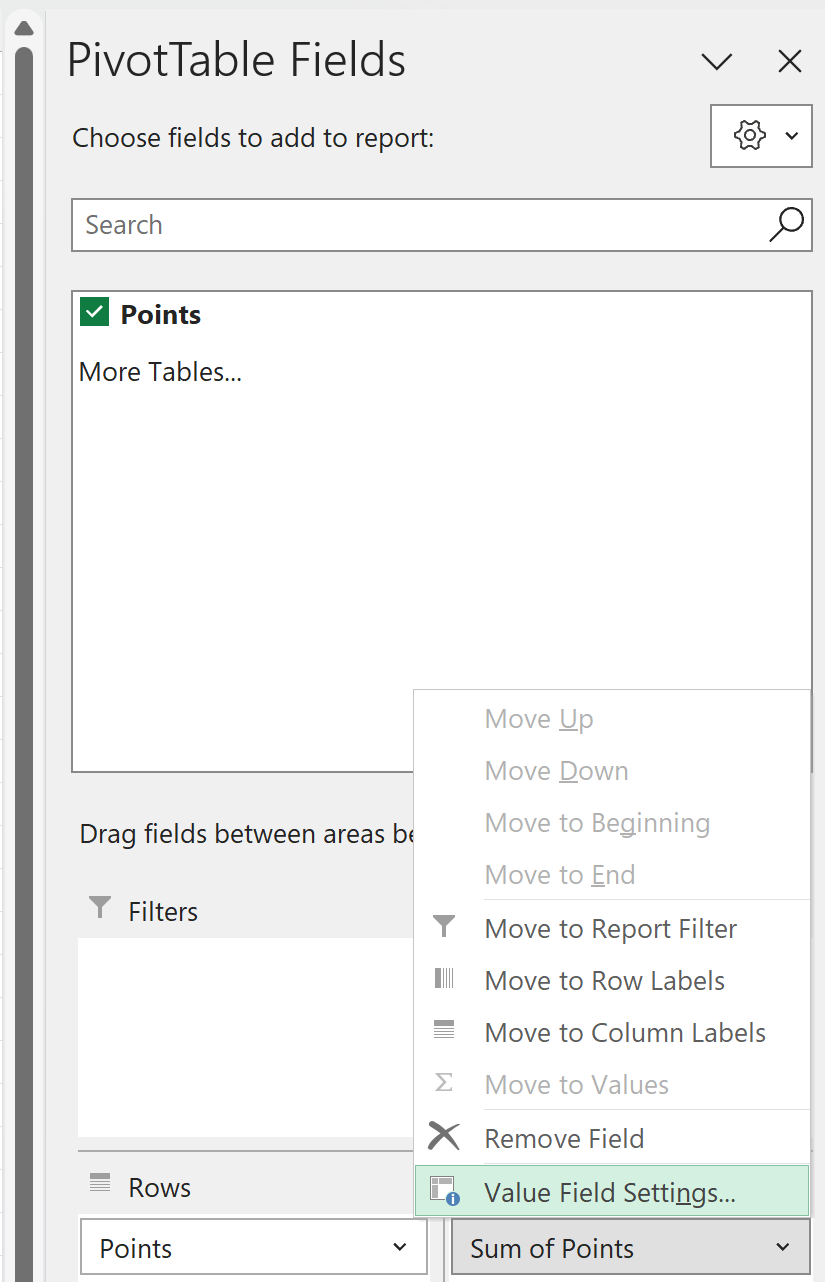

To make this crucial adjustment, locate the field listing in the Values box (it will likely read “Sum of Points”). Click on the dropdown arrow next to this label and select Value Field Settings. This opens a configuration dialog box that controls how the data is calculated.
Within the Summarize value field by section of the dialog box, select the Count option. This instructs the Pivot Table to tally the occurrences of each item, which is the definition of frequency. Once Count is selected, click OK to apply the change.
At this point, your Pivot Table will display a simple frequency distribution, listing every unique score and the count of times that score appeared in the dataset. While this is helpful, it is not yet the desired grouped frequency distribution. The next step involves grouping these individual scores into defined intervals.
Defining Group Intervals for the Distribution
The core functionality for creating the grouped distribution lies in the Group feature, which allows you to define the width and boundaries of your classes directly within the Pivot Table structure.

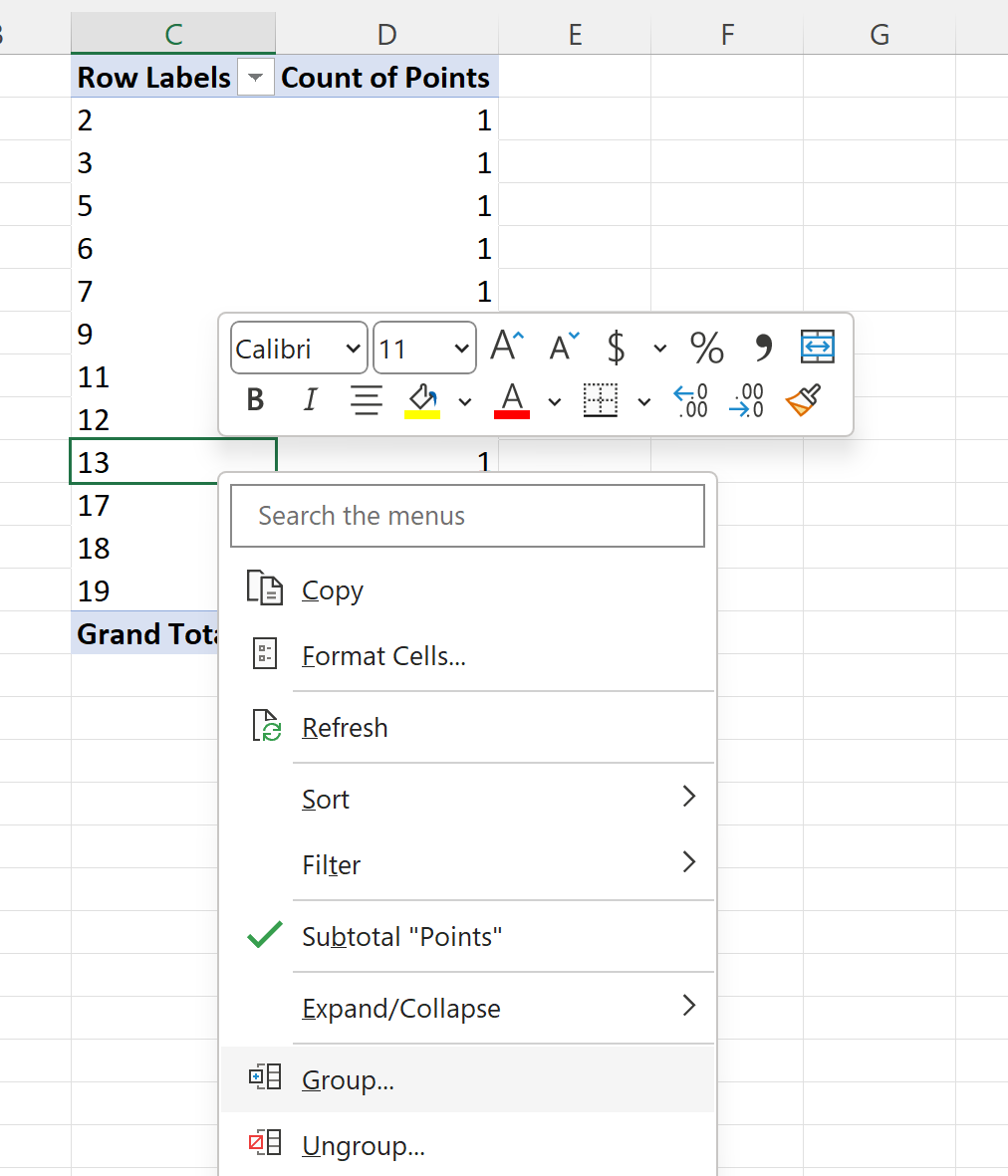

Accessing the Group Function: Right-click on any of the numerical values (Row Labels) in the first column of the Pivot Table (the column listing the individual scores). A context menu will appear. Select the Group option from this menu.
A new configuration window, titled Grouping, will pop up. This window is where you define the parameters for your grouped distribution. Excel automatically suggests the minimum value in the dataset as the Starting at point and the maximum value as the Ending at point. It also offers a suggested interval size for the By field.
You must define three critical parameters:
- Starting at: This should be the lowest value in your first interval. It is best practice to start slightly below the minimum score if the minimum score is not a clean boundary (e.g., starting at 0 or 1 for scores).
- Ending at: This should be the highest value in your last interval. Ensure it covers the maximum value in your dataset.
- By: This defines the class width or the increment size for each group. For our example, we choose an increment of 5 points.
For the basketball scores dataset (range 1 to 20), we will choose to group the values from 1 to 20, using an increment of 5. This will generate groups of 1-5, 6-10, 11-15, and 16-20.
After setting these values and clicking OK, the Pivot Table automatically restructures. The individual scores in the row labels are replaced by the newly defined intervals, and the associated value counts are aggregated into these groups. This instantaneous transformation yields the final, polished grouped frequency distribution.
Interpreting the Final Grouped Frequency Distribution
The resulting Pivot Table provides a clear, concise summary of the data spread. The first column lists the defined group intervals, and the second column provides the corresponding frequency (the count of observations) for that group.
From this generated grouped frequency distribution, we can draw immediate conclusions about the scoring patterns:
- The group representing scores between 1 and 5 has a count of 3. This means three players scored points within this lowest bracket.
- The group representing scores between 6 and 10 has a count of 4. This indicates four observations fall within this range.
- The group spanning 11 to 15 points shows the highest concentration, with a frequency of 5 values. This suggests the central tendency of the scores is slightly higher than the midpoint of the entire range.
- Finally, the group for scores between 16 and 20 contains 3 values, showing a slight tail-off in the highest performance range.
The Grand Total at the bottom confirms that the sum of the frequencies equals the total number of observations in the original dataset (15 scores), verifying the accuracy of the calculation. This structure allows for easy calculation of relative frequencies (by dividing each count by the grand total) and cumulative frequencies if required for further statistical analysis.
Advanced Considerations and Custom Group Sizes
While we utilized a class width of 5 in this example, the choice of group size is highly dependent on the nature of your dataset and the objective of the analysis. For larger datasets, smaller group sizes might be appropriate to reveal fine detail, whereas for highly dispersed data, slightly wider groups might be needed to capture underlying trends without excessive noise.
It is important to understand that the Grouping feature in Excel is incredibly flexible. If you decide that the class width of 5 does not provide the best visual representation, you can easily change the grouping parameters. Simply right-click on the row labels again, select Group, and adjust the value in the By field (e.g., change it to 2 or 10). Excel will instantly update the entire Pivot Table to reflect the new class intervals.
Furthermore, if you need asymmetrical groupings—for instance, grouping scores below 5 individually, and then grouping scores 5 and above in broader intervals—the Pivot Table grouping function allows you to manually adjust the start and end points of the grouping range, or even manually group specific rows together, though standard grouped frequency distributions usually rely on uniform class width for statistical consistency.
Mastering the Pivot Table Group feature is the most efficient and versatile method in Excel for transforming raw, continuous, or large discrete data into insightful, manageable grouped frequency distributions for reporting and analysis.
