Excel: Alternate Row Color Based on Group

Understanding the Challenge of Group-Based Alternation

Standard Excel zebra stripping, often accomplished using the built-in ROW function combined with the MOD function, alternates colors based purely on row count. While useful for general readability, this method fails completely when groups span multiple rows. If Player A takes up rows 2 through 6, and Player B takes up rows 7 through 10, standard alternation would color row 6 differently from row 5, even though they belong to the same player.

The goal is to ensure that all rows pertaining to ‘Player A’ share one color (e.g., white), and then all subsequent rows pertaining to ‘Player B’ share a different color (e.g., light gray), followed by ‘Player C’ returning to the original color, and so on. This continuous change based on categorical shifts provides the visual separation required for effective data analysis.

For instance, consider a massive dataset documenting individual scoring events. You need to alternate the row colors each time the value in the “Player” column changes to easily distinguish the performance records of one athlete from the next. The final result should look like the clear, segmented visualization below, which we aim to achieve:

The following steps provide a practical, step-by-step example showing precisely how to achieve this high-level conditional visualization.

Step 1: Preparing the Dataset

Before implementing any formulas or formatting, the most crucial prerequisite is ensuring your data is correctly structured. For group-based alternation to work reliably, the dataset must be sorted based on the primary grouping field—in this case, the “Player” column. If the data is not sorted, the formula we introduce in Step 2 will treat consecutive rows with the same name as part of the same group, but if the same name reappears later in the list, it will be incorrectly assigned to a new, separate group color.

For our demonstration, we will use a dataset detailing the points scored by several basketball players across multiple games. We assume this data has already been sorted alphabetically by the Player column, grouping all records for one player together before moving to the next player’s records.

The initial raw data, which lacks any visual distinction between the players, is presented below. Notice how the eye struggles to quickly isolate the records belonging exclusively to “Andrew” versus “Billy” without careful reading:

This unstructured presentation underscores the necessity of implementing group-based formatting. The goal is to visually segment the data into blocks corresponding to each unique player name, enhancing overall clarity and speeding up the process of data analysis.

Step 2: Implementing the Helper Column Logic

To apply Conditional Formatting based on group changes, Excel needs a way to numerically track when a group ends and a new group begins. This is the purpose of the helper column. We will designate Column C as our Helper Column.

The logic employed in this column is simple yet fundamental: assign a numerical identifier to each unique player name. When the name changes from the previous row, the identifier increments by one. When the name remains the same, the identifier stays constant. This creates a block of identical numbers for each distinct group.

First, initialize the helper column. We start by typing the value 0 into cell C1. This cell often acts as a placeholder or a header reference, but in this specific setup, starting at 0 allows us to reference it immediately in the next cell without error, assuming our data starts in row 2.

Next, the core logic is implemented in cell C2 using an IF formula. This formula checks if the value in the current row’s grouping column (A2) is identical to the previous row’s grouping column (A1). If they match, it copies the number from the previous row in the helper column (C1). If they do not match, it signifies a new group, and the formula increments the previous row’s helper column value by 1 (C1+1).

Type the following formula into cell C2:

=IF(A2=A1,C1,C1+1)

Once entered, this formula must be applied to the entire range of your dataset. Click on cell C2, then click and drag the fill handle down to the last row of your data in column C. Notice how the values in column C remain constant for all rows belonging to “Andrew” (value 1), increment to 2 for “Billy,” and then 3 for “Charles.” This numerical grouping is the key component needed for the subsequent conditional formatting step.

Step 3: Defining the Conditional Formatting Rule

With the helper column successfully generating sequential group identifiers, we are ready to apply the actual visual formatting. The key insight here is that we only want to color every alternate group (i.e., groups 1, 3, 5, etc., might remain white, while groups 2, 4, 6, etc., get the fill color). We can achieve this by checking if the group identifier in Column C is an even or an odd number.

First, select the entire data range you wish to format, including the helper column, but excluding the header row. For this example, highlight the cells in the range A2:C15. It is essential to include all columns in your selection so that the entire row receives the color fill.

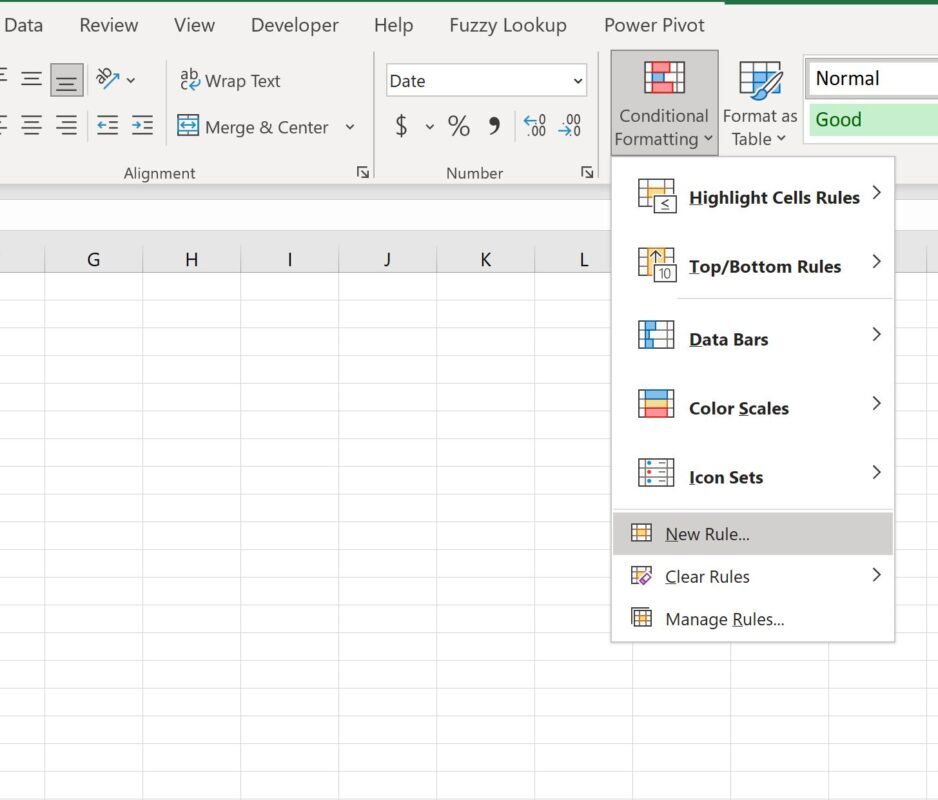

Next, navigate to the Home tab on the Excel ribbon, click the Conditional Formatting dropdown menu, and then select New Rule. In the dialog box that appears, select the rule type: “Use a formula to determine which cells to format.”

The formula we use relies on the MOD function (Modulo function), which returns the remainder of a division. By dividing the group number in Column C by 2, we can determine if the number is even (remainder 0) or odd (remainder 1). This mathematical operation is the backbone of the alternation logic.

Step 4: Applying the Modulo Function for Alternation

In the “Format values where this formula is true” input field, we will enter the following formula:

=MOD($C2, 2) = 0

It is critically important to use absolute referencing for the column ($C) and relative referencing for the row (2). When Conditional Formatting evaluates the rule across the entire selected range (A2:C15), the absolute column reference ensures that every cell in a given row checks the value in Column C, while the relative row reference allows the row number to correctly adjust from $C2 to $C3, $C4, and so on.

The formula reads: “Apply the formatting if the remainder of the value in column C, divided by 2, is equal to zero (i.e., the value is an even number).” This targets every second group.

After entering the formula, click the Format button to select the desired color and style. Choose a subtle fill color (like a light gray or green) that provides contrast without hindering readability. You may also adjust font styles or borders here if desired. Once the format is chosen, click OK twice to apply the rule.

Achieving the Final Visual Grouping

Once you press OK, the power of Conditional Formatting immediately takes effect. The row colors within the range A2:C15 will now visibly alternate precisely when the value in the “Player” column changes, demonstrating a successful segmentation of the data based on groups. The technique works perfectly because the helper column ensures that all rows for Andrew (Group 1 – Odd) remain uncolored, while all rows for Billy (Group 2 – Even) receive the chosen fill color, followed by Charles (Group 3 – Odd) being uncolored again.

Note: In this specific example, we used a light green fill for the conditional formatting to highlight the even-numbered groups. You have complete freedom to choose any color and style that suits your report design. Furthermore, after achieving the desired visual result, you may simply hide Column C (the helper column) to maintain a clean appearance, as it has served its purpose in driving the conditional logic.

Conclusion: Enhancing Data Readability for Analysis

The ability to dynamically alternate row colors based on group criteria represents a significant step forward from basic formatting techniques. This methodology transforms raw, monolithic data into clear, segmented blocks, drastically improving readability and accelerating professional data analysis. It eliminates ambiguity and allows stakeholders to quickly isolate and compare records belonging to distinct categories.

This technique is highly flexible and can be applied across numerous business applications. Whether you are tracking inventory movements, segmenting HR records by department, or analyzing sales data by region, group-based alternation provides invaluable visual cues. By mastering this combination of the IF function, the MOD function, and Conditional Formatting, you unlock a powerful capability within Excel, enabling you to present complex information with unmatched clarity and precision.

For those looking to expand their advanced Excel skills, exploring other conditional formatting capabilities, such as applying rules based on specific text content, is highly recommended.
