A pairs plot, also known as a scatterplot, is a graphical representation of the relationship between two variables in Python. It is created by plotting each pair of variables in a dataset against each other on a graph. The plot helps to identify the correlation between the two variables and any underlying trends or patterns. Pairs plots are commonly used in exploratory data analysis to quickly identify and visualize the relationships between multiple variables.
A pairs plot is a matrix of that lets you understand the pairwise relationship between different variables in a dataset.
The easiest way to create a pairs plot in Python is to use the function.
The following examples show how to use this function in practice.
Example 1: Pairs Plot for All Variables
The following code shows how to create a pairs plot for every numeric variable in the seaborn dataset called iris:
import pandas as pd import matplotlib.pyplot as plt import seaborn as sns #define dataset iris = sns.load_dataset("iris") #create pairs plot for all numeric variables sns.pairplot(iris)

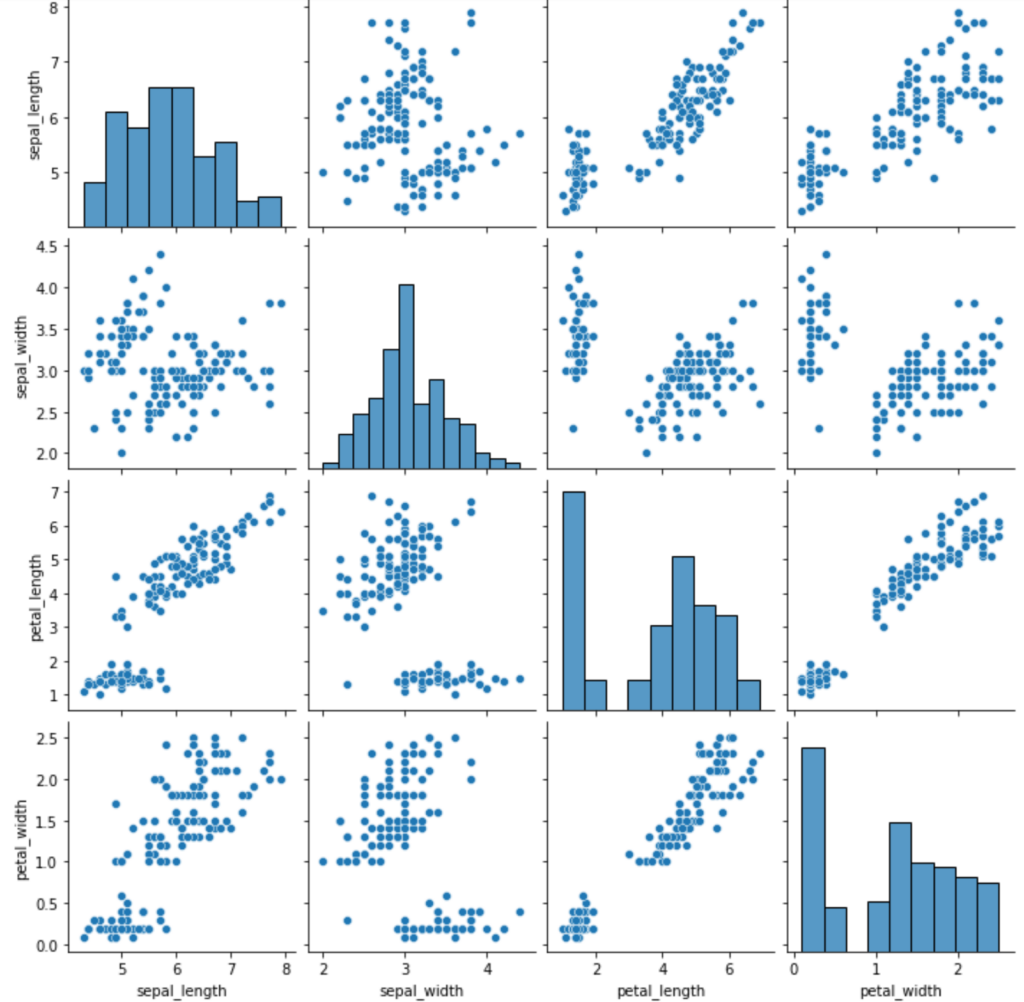

The way to interpret the matrix is as follows:
- The distribution of each variable is shown as a histogram along the diagonal boxes.
- All other boxes display a scatterplot of the relationship between each pairwise combination of variables. For example, the box in the bottom left corner of the matrix displays a scatterplot of values for petal_width vs. sepal_length.
This single plot gives us an idea of the relationship between each pair of variables in our dataset.
Example 2: Pairs Plot for Specific Variables
We can also specify only certain variables to include in the pairs plot:
sns.pairplot(iris[['sepal_length', 'sepal_width']])
Example 3: Pairs Plot with Color by Category
We can also create a pairs plot that colors each point in each plot based on some categorical variable using the hue argument:
sns.pairplot(iris, hue='species')
By using the hue argument, we can gain an even better understanding of the data.
